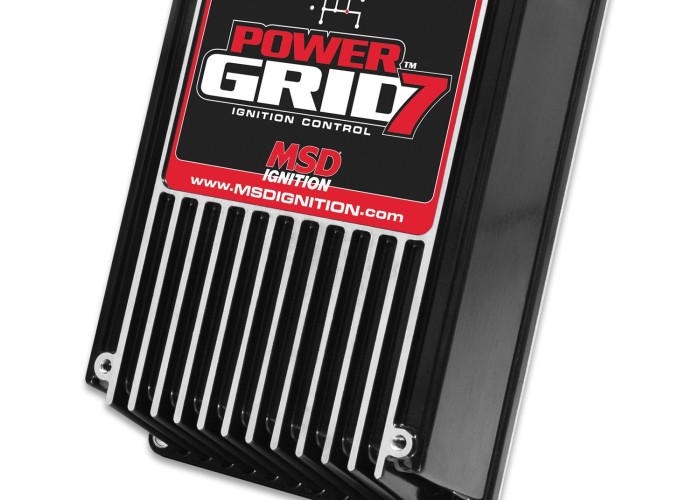

MSD 7720 - Ignition Control Module
New Car Parts
Details
The MSD 7720 is an advanced digital ignition control module designed to provide precise timing control and enhanced spark energy for high-performance applications. This module interfaces with factory and aftermarket ignition systems to deliver programmable timing control and multiple rev limit settings.
Technical Specifications:
- Operating Voltage: 12-18V DC
- Maximum Output Voltage: 460-480V
- Spark Energy: Up to 135-140 mJ per spark
- RPM Range: 0-12,500 RPM
- Maximum Current Draw: 18A @ 12V
- Number of Rev Limits: 2 (adjustable)
- Timing Retard: 0-20 degrees
- Points Dwell: 30-35 degrees
- Weight: Approximately 2.2 lbs
- Dimensions: 8.2" x 3.8" x 2.2"
- Operating Temperature Range: -20°F to +185°F
Interface Capabilities:
- Compatible with Points/Electronic Ignitions
- Magnetic Pickup Input
- Tach Output Signal
- Step Retard Input
- 2-Step Launch Control Input
- Programmable Start Retard
Technical Features:
- Digital RPM Limiting Technology
- Built-in Start Retard Function
- LED Diagnostic Indicators
- Capacitive Discharge Technology
- Built-in reverse polarity protection
- Sealed weather-resistant housing
- High-speed MOSFET switching
- Internal EMI/RFI noise suppression
Compatible Applications:
- Drag Racing
- Circle Track
- Marine Applications
- Off-Road Racing
- Street Performance
- Most 4, 6, and 8 cylinder engines
Installation Requirements:
- 12V Power Source
- Ground Connection
- Coil Connection
- Trigger Input Signal
- Tach Output (optional)
- RPM Module (if required for specific application)
For more info., visit our page https://riotparts.com/ignition/msd-7720-power-grid-ignition-system-ignition-control
Seller
Shane Brady
Riot Parts
riotparts.com
On website since. 2024
Price: $696
